Himac離心機轉頭適配離心管

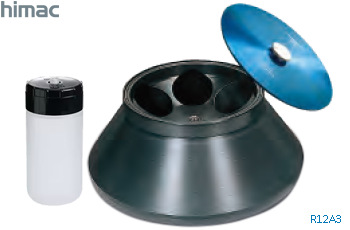

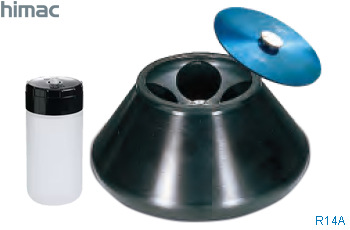

250mL角轉頭R16A3/R13A/R12A3/R14A適配離心瓶
R16A3、R13A、R12A3和R14A四個角轉頭，最大單管容量均為250mL，常用于收獲細菌、細胞或酵母以及清除細胞碎片。R16A3配屬于CR30NX，其余三個角轉頭則適用于CR22N立式高速冷凍離心機。
商品名稱：R16A3 R13A R12A3 R14A Fixed angle rotor 250mL離心瓶
制 造 商：eppendorf公司
品 牌：Himac
轉頭適配離心瓶見：［訂購信息］
詳細描述
R16A3、R12A3、R13A和R14A這四個角轉頭，最大單管容量均為250mL，常用于收獲細菌、細胞或酵母以及清除組織勻漿或細胞裂解液中的組織細胞碎片。
R16A3最大容量6×250mL，最高離心速度16000 rpm，適用于CR30NX立式高速冷凍離心機。R13A、R12A3和R14A適用于適用于CR22N。R12A3角轉頭最大容量6×250mL，最高離心速度12000 rpm。
R14A為4×250mL容量，轉速最高14000rpm。即使在離心過程中，樣品從轉子內的管子中溢出，溢出的樣品也會停留在R13A型流體環空中。R22A4型。

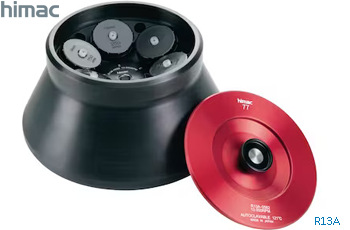

R13A的最多可有6個250mL離心孔和6個11mL離心孔，無需適配器就可同時離心6×250mL離心瓶(尺寸φ62×124mm)和φ16×82mm的10-12mL圓底管。R13A轉頭上部具有環形槽（fluid annulus），在離心過程中，樣品從轉子內的管子中溢出時，液體也會停留流體環中而不會泄露到轉頭外部。
添加50TA300適配器后，R16A3、R12A3、R13A和R14A可用于Himac 50TC組織培養管或市面同類型尖底離心管高速離心。
1、主要技術規格
適用主機 | CR30NX | CR22N | ||
轉頭型號 | R16A3 | R13A | R12A3 | R14A |
額定工作容量 | 250 mL×6 | (250 mL+11 mL)×6 | 250 mL×6 | 250mL × 4 |
適用離心瓶尺寸 | φ6.2×13.2cm | |||
最高轉速/RCF | 16000rpm/ 40100×g | 13000 rpm/26400×g | 12000rpm/ 23800×g | 14000 rpm/30240×g |
轉頭離心孔傾斜角度 | 25° | 25° | 30° | 35° |
最高轉速時k factor | 756 | 1112 | 1292 | 1189 |
轉頭材質 | 鋁合金（Aluminum alloy） | |||
轉頭自身空重 | 12 kg | 11 kg | 16.0kg | 16.8 kg |
2、標準工作組件
適用主機 | CR30NX | CR22N | ||
轉頭型號 | R16A3 | R13A | R12A3 | R14A |
250PP Bottle | 5721411012 6pcs | 5721411012 4pcs | ||
Bottle Setter轉頭蓋螺栓 | 5721411172 1x | |||
Rotor Set Handle（轉頭提取手柄） | NA | 5721411239 1x | ||
Rotor O-Ring轉頭蓋密封圈 | 5721411134 1x | 5720410168 1x | 5720410223 1x | |
Rotor Set Handle O-Ring | 5721411120 1x | 5721411119 1x | ||
訂貨信息
品名 | 品牌 | 貨號 | 規格 | 描述 | 報價 |
R16A3角轉頭 | Himac | 5721302111 | 1 set | R16A3 Fixed Angle Rotor Package - CR30NX Max. Speed 16000rpm/Max. RCF 40100×g Maximum tube capacity 6×250mL bottle Incl. 250PP Bottle x 6 | 詢價 |
250mL×6角轉頭R12A3 | Himac | 5721221011 | 1 set | R12A3 Fixed Angle Rotor Package – CR22N Max. Speed 12000rpm/Max. RCF 23800xg; Tubes Nominal Capacity: 6×250 mL; Tube dimensions: ?62×124 mm incl. 6 x 250 mL PP bottles | 詢價 |
250mL×6角轉頭R13A | Himac | 5721221009 | 1 set | R13A Fixed Angle Rotor Package – CR22N Max. Speed 13000rpm/Max. RCF 26400xg; 250PP bottle×6; Tubes Nominal Capacity: 6×250 mL; Tube dimensions: ?62×124 mm | 詢價 |
250mL×4角轉頭R14A | Himac | 5721221008 | 1 set | R14A Fixed Angle Rotor Package – CR22N Max. Speed 14000rpm/Max. RCF 30240xg; 250PP bottle×4; Tubes Nominal Capacity: 4×250 mL; Tube dimensions: ?62×124 mm | 詢價 |
300SS鋼離心管 | Himac | 5721411063 | 2 pcs/set | 300SST Tube Nominal Tube Size: φ6.2×12.8 cm; Tube Material: SST; Net Sample Volume: 160mL; Max. speed 16000 rpm/Max. RCF 40100×g | 詢價 詢價 |
250PP離心瓶 | Himac | 5721411012 | 10 pcs/set | 250PP Bottle Nominal Tube Size: φ6.2×12.4 cm; Tube Material: PP; Net Sample Volume: 250mL; Max. speed 16000 rpm/Max. RCF 40100×g | 詢價 詢價 |
250PC離心瓶 | Himac | 5721411013 | 10 pcs/set | 250PC Bottle ASSY Nominal Tube Size: φ6.2×12.4 cm; Tube Material: PC; Net Sample Volume: 250mL; Max. speed 16000 rpm/Max. RCF 40100×g | 詢價 詢價 |
94SS鋼離心管 | Himac | 5720411165 | 2 pcs/set | 94SS Tube ASSY Nominal Tube Size: φ3.8×10.1 cm; Tube Material: SST; Net Sample Volume: 58mL; Max. speed 10000 rpm/Max. RCF 13080×g 80A300 Adapter (5721411104) required | 詢價 詢價 |
80PA離心瓶 | Himac | 5721411010 | 10 pcs/set | 80PA Bottle Nominal Tube Size: φ3.8×10.4 cm; Tube Material: PP; Net Sample Volume: 60mL; Max. speed 10000 rpm/Max. RCF 13080×g 80A500 Adapter required | 詢價 詢價 |
70PC離心瓶 | Himac | 5721411011 | 10 pcs/set | 70PC Bottle Nominal Tube Size: φ3.8×10.4 cm; Tube Material: PC; Net Sample Volume: 55mL; Max. speed 10000 rpm/Max. RCF 13080×g 80A300 Adapter (5721411104) required | 詢價 詢價 |
80A300適配器 | Himac | 5721411104 | 4 pcs/set | 80A300 Adapter ASSY applicable tube size: 6.1×11.7 cm; Adapter Material: NBR; Number of tubes per Adapter: 1 | 詢價 詢價 |
50SS鋼離心管 | Himac | 5721411058 | 2 pcs/set | 50SST Tube Nominal Tube Size: φ2.9×10.2 cm; Tube Material: SST; Net Sample Volume: 36mL; Max. speed 10000 rpm/Max. RCF 13250×g 50A300 Adapter(B) required | 詢價 詢價 |
50PP離心瓶 | Himac | 5721411008 | 10 pcs/set | 50PP Bottle Nominal Tube Size: φ2.9×10.3 cm; Tube Material: PP; Net Sample Volume: 32mL; Max. speed 10000 rpm/Max. RCF 13250×g 50A300 Adapter(B) required | 詢價 詢價 |
50PC薄壁開口管 | Himac | 5721411057 | 10 pcs/set | 50PC Tube without cap Nominal Tube Size: φ2.9×10.3 cm; Tube Material: PC; Net Sample Volume: 3mL; Maximum Speed 22000rpm/Max. RCF 58700xg 50A300 Adapter(B) required | 詢價 詢價 |
50A300適配器(B) | Himac | 5721411100 | 2 pcs/set | 50A300 Adapter (B) applicable tube size: 6.1×11.5 cm; Adapter Material: PP; Number of tubes per Adapter: 1 | 詢價 詢價 |
50PA薄壁開口管 | Himac | 5721411056 | 10 pcs/set | 50PA Tube for rotors R14A, R20A2, R22A3 Nominal Tube Size: φ2.9×10.4 cm; Tube Material: PP; Net Sample Volume: 34mL; Max. speed 10000 rpm/Max. RCF 13250×g M-PP Lid required | 詢價 詢價 |
50PC薄壁開口管 | Himac | 5721411057 | 10 pcs/set | 50PC Tube Nominal Tube Size: φ2.9×10.3 cm; Tube Material: PC; Net Sample Volume: 35mL; Maximum Speed 22000rpm/Max. RCF 58700xg M-PP Lid required | 詢價 詢價 |
50A300適配器(B) | Himac | 5721411100 | 2 pcs/set | 50A300 Adapter (B) ASSY applicable tube size: 6.1×11.5 cm; Adapter Material: PP; Number of tubes per Adapter: 1 | 詢價 詢價 |
M-PP管蓋組件 | Himac | 5721411074 | 20 pcs/set | M-PP Lid for 50PA/PC Tube | 詢價 詢價 |
50 GlaSS鋼離心管 | Himac | 5721411059 | 10 pcs/set | 50 GLASS Tube ASSY Nominal Tube Size: φ3.5×10.0 cm; Tube Material: Glass; Net Sample Volume: 35mL; Maximum Speed 4000rpm/Max. RCF 2400xg 50GA300 Adapter required | 詢價 詢價 |
50GA300適配器 | Himac | 5721411102 | 4 pcs/set | 50GA300 Adapter ASSY applicable tube size: 6.1×11.7 cm; Adapter Material: NBR; Number of tubes per Adapter: 1 | 詢價 詢價 |
50mL錐形離心管 | Falcon | 352070 | 25 pcs/pk, 500pcs/cs | 50mL Conical-Bottom Tube with flat-top screw cap Material: high-clarity polypropylene Dimensions (Outer diameter × Height): 30×115 mm Maximum RCF: 16000 xg packaging: No rack, Sterile | 詢價 詢價 |
50mL錐形高速離心管 | Corning | 430291 | 25 pcs/pk, 500pcs/cs | 50mL Conical-Bottom Tubes with Plug Seal Cap Material: polypropylene (PP) Dimensions (Outer diameter × Height): 29.1×114.4 mm Maximum RCF: 15500×g packaging: 25pcs/pk, Sterile | 詢價 詢價 |
50mL CentriStar錐形離心管 | Corning | 430829 | 25 pcs/pk 10 pks/cs | 50mL Conical-Bottom Tubes with CentriStar Cap Material: polypropylene (PP) Dimensions (Outer diameter × Height): 29.1×114.4 mm Maximum RCF: 17000×g packaging: 25pcs/pk, Sterile | 詢價 詢價 |
50mL錐形管 | eppendorf | 0030122186 | 12racks×25pcs | 50mL Conical-bottom Tubes with screw cap Diameter: 17mm/30mm Nominal Sample Volume: 15mL/50mL Centrifugation Max. RCF: 19500×g Packing: 300 tubes (12 racks × 25 tubes) | 詢價 詢價 |
50TA300適配器 | Himac | 5721244012 | 2 pcs/set | 50TA300 Adapter applicable tube size: 6.1×10.5 cm; Adapter Material: POM; Number of tubes per Adapter: 1 | 詢價 詢價 |
10ml GlaSS鋼離心管 | Himac | 5721411042 | 50 pcs/set | 10ml Glass Tube Nominal Tube Size: φ1.2×10.5 cm; Tube Material: Glass; Net Sample Volume: 7.2mL; Maximum Speed 4000rpm/Max. RCF 2700xg 10G7A300 Adapter required | 詢價 詢價 |
10G7A300適配器 | Himac | 5721411085 | 4 pcs/set | 10G7A300 Adapter applicable tube size: 6.1×11.7 cm; Adapter Material: POM; Number of tubes per Adapter: 7 | 詢價 詢價 |
himac 50mL尖底離心管 | Himac | 5721411170 | 100 pcs/set | himac 50TC Tube for R16A3 ,R13A rotor Nominal Tube Size: φ3.0×10.5 cm; Tube Material: PP; Net Sample Volume: 43mL; Maximum Speed 11000rpm/Max. RCF 16200xg | 詢價 詢價 |
50TA300適配器 | Himac | 5721244012 | 2 pcs/set | 50TA300 Adapter for himac 50TC Tube Use with R16A3 ,R13A rotor applicable tube size: 6.1×10.5 cm; Adapter Material: POM; Number of tubes per Adapter: 1 | 詢價 詢價 |
11PA厚壁開口管 | Himac | 5721411043 | 10 pcs/set | 11PA Thick-walled Tube for R13A rotor Only Use in R13A Fixed angle rotor Nominal Tube Size: φ1.6×8.2 cm; Tube Material: PP; Net Sample Volume: 8mL; Maximum Speed 13000rpm/Max. RCF 23400xg C2-PP Lid required | 詢價 詢價 |
C2-PP管蓋組件 | Himac | 5721411071 | 20 pcs/set | C2-PP LID for 11PA Thick-walled Tube | 詢價 詢價 |
-
